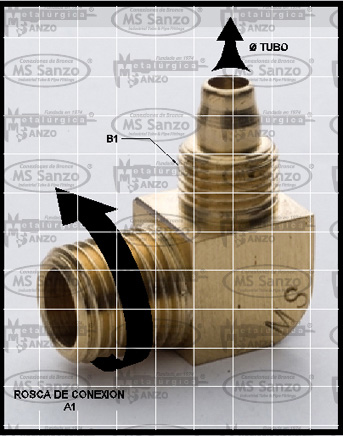

CONECTOR CODO A 90º - MS 902 |
||||
CÓDIGO |
Ø TUBO |
ROSCA DE cONEXIÓN A1 |
ROSCA DE AJUSTE B1 |
|
902-001 |
1/4” |
1/8” BSPT |
UNF 3/8” x 24 |
|
902-002 |
1/4” |
1/4” BSPT |
UNF 3/8” x 24 |
|
902-003 |
5/16” |
1/8” BSPT |
UNS 7/16” x 24 |
|
902-004 |
5/16” |
1/4” BSPT |
UNS 7/16” x 24 |
|
902-005 |
3/8” |
1/4” BSPT |
UNS 1/2” x 24 |
|
902-006 |
3/8” |
3/8” BSPT |
UNS 1/2” x 24 |
|
902-007 |
1/2” |
1/4” BSPT |
UNF 5/8” x 18 |
|
902-008 |
1/2” |
3/8” BSPT |
UNF 5/8” x 18 |
|
|
|
|
|
|
902-009 |
6mm |
1/8” BSPT |
M10x1 |
|
902-010 |
6mm |
1/4” BSPT |
M10x1 |
|
902-011 |
8mm |
1/8” BSPT |
M12x1 |
|
902-012 |
8mm |
1/4” BSPT |
M12x1 |
|
902-013 |
10mm |
1/4” BSPT |
M14x1 |
|
902-014 |
10mm |
3/8” BSPT |
M14x1 |
|
902-015 |
12mm |
1/4” BSPT |
M16x1 |
|
902-016 |
12mm |
3/8” BSPT |
M16x1 |
|
902-017 |
12mm |
1/2” BSPT |
M16x1 |
|
